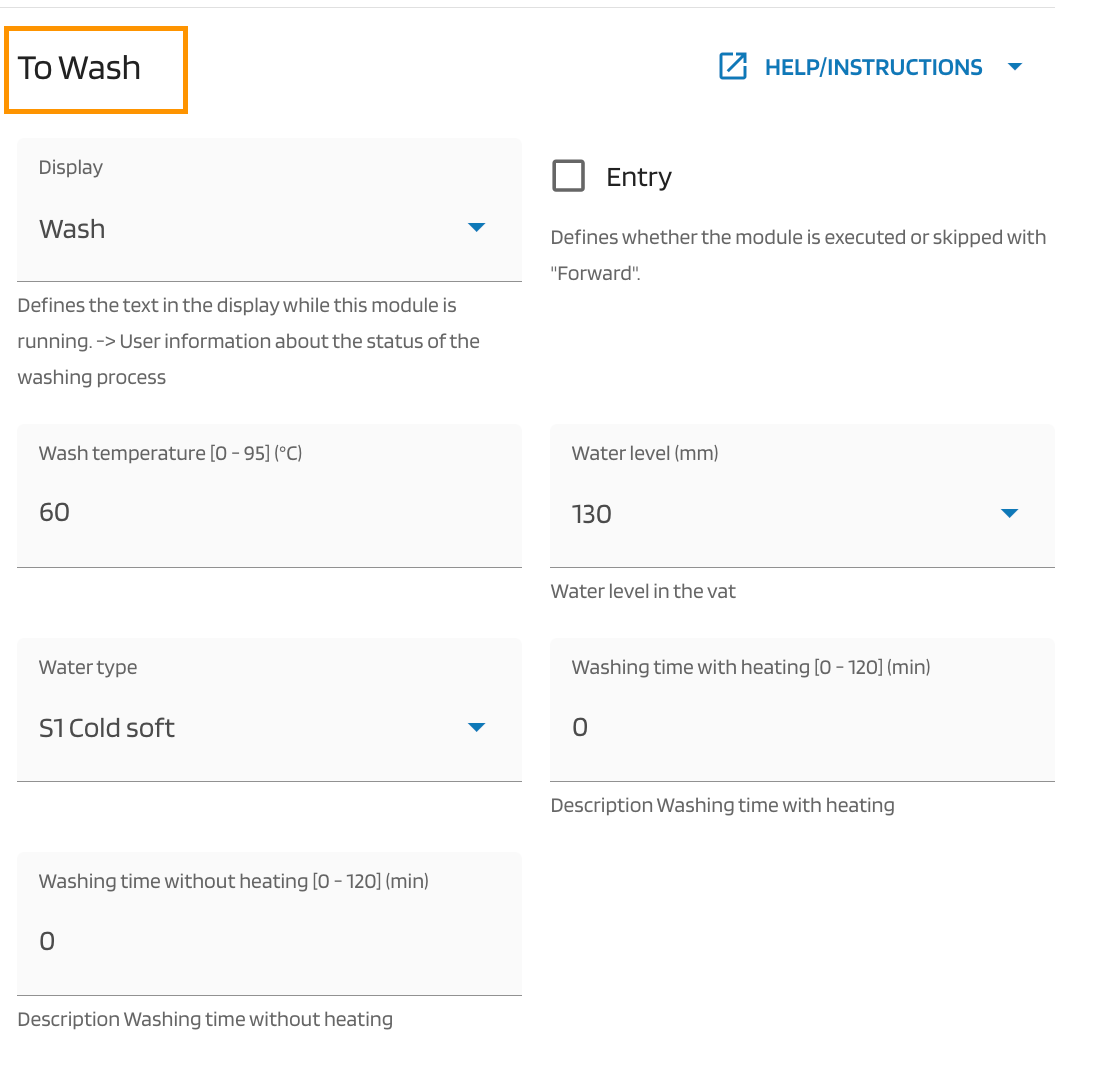

3️⃣ To Wash
With this module, the machine reverses the values specified in the first module (Wash mechanism).
| ⚙️ Parameter | 🛠️ Options | 💡 Description | 🔄 Default Value |
|---|---|---|---|
| Wash temperature [0 - 95°C] | N/A | This setting determines the desired temperature. Do not increase the temperature, it should be set at 0°C. If the desired temperature is not reached within a defined time, the display will show the corresponding error report and the program will stop. | 0 °C |
| Water level [49 - 240mm] | N/A | At the start of module "M02" the dispensing of the water begins and continues until the desired level has been reached. If this level falls below a hysteresis value in the course of the wash, the water will be re- dispensed until the desired level is reached again. Note: The controls only switch on the heater when it is under water. That is why care must be taken to ensure that no levels are programd that are lower than the level of the heater. Heater level: WE20 7-11kg = 78mm / WE20 -14,18kg = 69mm | 70mm |
| Water type | N/A | With each type of water, it is possible to select which chamber, or more specifically which valve, should be used to fill up the water level. | S1_ ColdSoft |
| Water type | S1 ColdSoft | The pre-wash chamber fills with cold or soft water. | S1_ ColdSoft |
| Water type | S1 Warm | Currently unavailable for the "topLine pro" machine. | S1_ ColdSoft |
| Water type | S1 ColdDirect | The direct inlet fills with cold water | S1_ ColdSoft |
| Water type | S2 ColdSoft | The main wash chamber fills with cold or soft water through. | S1_ ColdSoft |
| Water type | S2 Warm | The main wash chambers fills with warm water through (Cold and warm water are automatically mixed when the wash temperature is < 60°C). | S1_ ColdSoft |
| Water type | S2 ColdDirect | The direct inlet fills with cold water fills. | S1_ ColdSoft |
| Washing time with heating [0 - 120min] | N/A | The "washing time with heating" includes the washing time after the set wash temperature has been reached. During this time, re-heating occurs as soon as the temperature falls below a certain hysteresis value. If the washing time is programd to "0", washing takes place only until the desired wash temperature is reached. | 0min |
| Washing time without heating [0 - 120min] | N/A | The "Washing without heating" includes the washing time after the desired wash temperature has been reached, during this time no reheating occurs even if the temperature falls below a certain hysteresis value. This function always follows the "Washing time with heating" function. | 0min |
